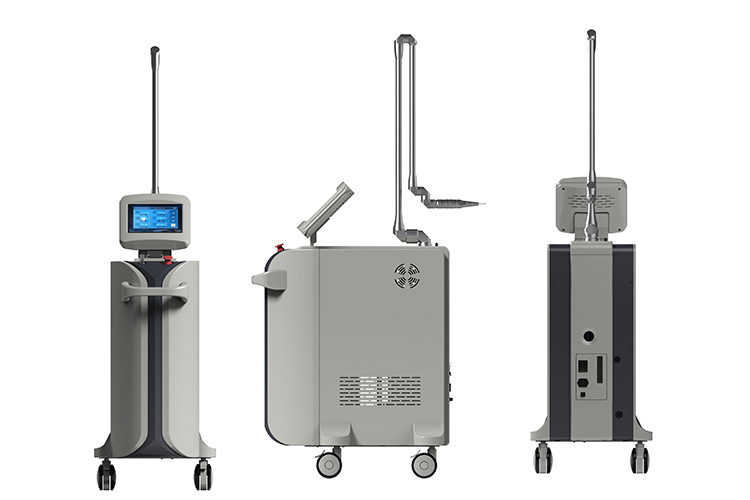

Pico Laser Q Switch Tattoo Removal Carbon Peeling Machine
零售价
$ 0
市场价
$ 0
重量
0
kg
库存
0
隐藏域元素占位
- Product
- Handpieces
- Specifications
- Application
- Before&After Photos
- Video
-
- Commodity name: Pico Laser Q Switch Tattoo Removal Carbon Peeling Machine
- Commodity ID: CP038
- Delivery Method:
Q-swithced Nd YAG Laser Tattoo Removal Beauty Machine
Unique advantages：
1) It adopt international new smart 7 segments segments articular arm, the exclusive manufacturer of using this technology in China.
2) Main elements such as Q Switch and polarizer are imported from international famous company, and advanced technology of laser cavity is used to produce excellent light spot modes, even light intensity, no highlighted point.
3) Imported light route from South Korea, ensure energy stabilization.
4) Imported water pump, no noise and larger water flow for better cooling, prolong laser life.
5) Joint arm can meet different areas treatment completely.
6) Spot size 2-10mm adjustable controlled on the treatment head.
7) Computer system controls stable output power exactly.
“Top Hat” Beam Advantages
Enhanced treatment safety and efficiency by homogeneous distributionof energy Top-hat beam profile minimizes epidemal damage ,comfortable feeling and no scarning Fast laser beam delivery 10 shots/second ,treatment procedure greatly reduced .Especially good results for hyper pigment ,such ad chloasma ,dermal pigment ,birthmark ,tattoo etc.
“Top Hat” Technology

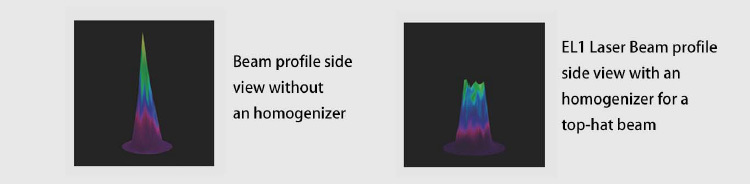

Beam profile side view without an homogenizer
Med-860 Laser Beam profile side view with an homogenizer for top-hat beam
Indications of Treatment:
Dermis pigmentation
-----Birth mark, such as: Ota nevus, Ito nevus, black nevus
-----Pigment, such as: sun-burn spots, age spots, speckle, freckle, senior fleck
-----Man made pigment: Blue, black, red, brown tattoo, lips line, eyebrow line
Epidermis pigmentation
-----Speckles: such as freckle, senior flecks, coffee spot......
Vascular lentigines
-----vascular lesion, spider vessel, spider veins
Skin rejuvenation with laser peeling
The wavelength
1064nm/532nm
Energy range
100-2000mJ(1064nm)
The screen
10.4 TFT touch screen
Spot size
2-10mm
Repetition frequency
10Hz
The pulse width
5-7ns,450ps
Continuous working time
Can work continuously for 24 hours(when the room
Cooling System
Air cooling and water cooling
Temperature requirements
10℃～30℃
Humidity
≤85%
Voltage
220v±10%,50/60HZ
Treatment principle
High focus 1064nm 532 nm laser energy transmits instantaneously to target lesion site within extremely short period(6ns) and then results in an instantaneous pigmentation blasting. The pigmentation tiny small particles are shattered into fragments,some fragments in the epidermis will be removed directly and deeptiny fragment in the dermiswill be devoured by phagocytes and then eliminated by lymphatic system, so achieve the best result for pigmentation removal.
Desirable Clinical Results
Chloasma ,3 sessions :
Energy :650MJ
Frequency: 4HZ
Wavelength :1064nm
Nevus of Ota,8 sessions:
Energy : 800MJ
Frequency :6Hz
Wavelength: 1064nm
Key words:- Q Switch Tattoo Removal Carbon Peeling Machine
-
“Top Hat” Beam Advantages
Enhanced treatment safety and efficiency by homogeneous distributionof energy Top-hat beam profile minimizes epidemal damage ,comfortable feeling and no scarning Fast laser beam delivery 10 shots/second ,treatment procedure greatly reduced .Especially good results for hyper pigment ,such ad chloasma ,dermal pigment ,birthmark ,tattoo etc.
“Top Hat” Technology
Beam profile side view without an homogenizer
Med-860 Laser Beam profile side view with an homogenizer for top-hat beam
-
The wavelength
1064nm/532nm
Energy range
100-2000mJ(1064nm)
The screen
10.4 TFT touch screen
Spot size
2-10mm
Repetition frequency
10Hz
The pulse width
5-7ns
Continuous working time
Can work continuously for 24 hours(when the room
Cooling System
Air cooling and water cooling
Temperature requirements
10℃～30℃
Humidity
≤85%
Voltage
220v±10%,50/60HZ
-
Indications of Treatment:
Dermis pigmentation
-----Birth mark, such as: Ota nevus, Ito nevus, black nevus
-----Pigment, such as: sun-burn spots, age spots, speckle, freckle, senior fleck
-----Man made pigment: Blue, black, red, brown tattoo, lips line, eyebrow line
Epidermis pigmentation
-----Speckles: such as freckle, senior flecks, coffee spot......
Vascular lentigines
-----vascular lesion, spider vessel, spider veins
Skin rejuvenation with laser peeling
-
Treatment principle
High focus 1064nm 532 nm laser energy transmits instantaneously to target lesion site within extremely short period(6ns) and then results in an instantaneous pigmentation blasting. The pigmentation tiny small particles are shattered into fragments,some fragments in the epidermis will be removed directly and deeptiny fragment in the dermiswill be devoured by phagocytes and then eliminated by lymphatic system, so achieve the best result for pigmentation removal.
Desirable Clinical Results
Chloasma ,3 sessions :
Energy :650MJ
Frequency: 4HZ
Wavelength :1064nm
Nevus of Ota,8 sessions:
Energy : 800MJ
Frequency :6Hz
Wavelength: 1064nm
